May, 29, 2025Introduction
Standard Alternator Plug Configuration
Modern alternators typically feature a 2 to 4-pin weatherproof connector with the following common terminal designations:
Details
Terminal Wire Color Function
L Yellow/Red Charging Indicator Control
IG White Ignition Switch Input
S Black/Red Battery Voltage Sense
FR Blue Field Monitor Output
Terminal Functions Explained
L Terminal (Load)
Controls the charging warning light
Provides excitation current during startup
Typical voltage: 0V (light on) to 12V (charging)
Circuit protection: 5A fuse
IG Terminal (Ignition)
12V switched power from ignition
Activates voltage regulator
Current draw: <1A
Must maintain 10.5V minimum during cranking
S Terminal (Sense)
Battery voltage reference
Compensates for wiring voltage drop
Direct connection to battery positive recommended
Critical for proper voltage regulation
FR Terminal (Field Rotor)
PWM signal (100-200Hz)
Duty cycle indicates field current
Used for ECU monitoring
0-5V or 0-12V output depending on system
Connector Types
A. Bosch-Style (Common European)
2-pin variant: L+IG
4-pin variant: L+IG+S+FR
Keying notch at 45° angle
IP67 rated sealing
B. Denso-Style (Common Asian)
3-pin rectangular
Includes L+IG+S
Locking tab on top
0.64mm terminal pins
C. Valeo-Style (French Vehicles)
Oval 4-pin
Unique FR signal protocol
Requires special mating connector
Diagnostic Procedures
Voltage Testing (Engine Off)
IG terminal: Should match battery voltage with ignition on
L terminal: ~1V lower than battery voltage
S terminal: Must equal battery voltage
FR terminal: 0V (no field activity)
Resistance Checks
IG to Ground: >10kΩ (open circuit)
L to Ground: 500-1000Ω (lamp circuit)
Field winding: 2-5Ω (rotor resistance)
Common Failure Modes
Corroded terminals (voltage drop >0.5V)
Broken locking tabs (intermittent connection)
Pin retainer failure (backed-out terminals)
Water intrusion (green corrosion)
Special Notes
Some Chrysler systems combine L/IG
Late-model vehicles may use LIN bus communication
Always verify pinout with service manual
Aftermarket plugs may reverse standard position

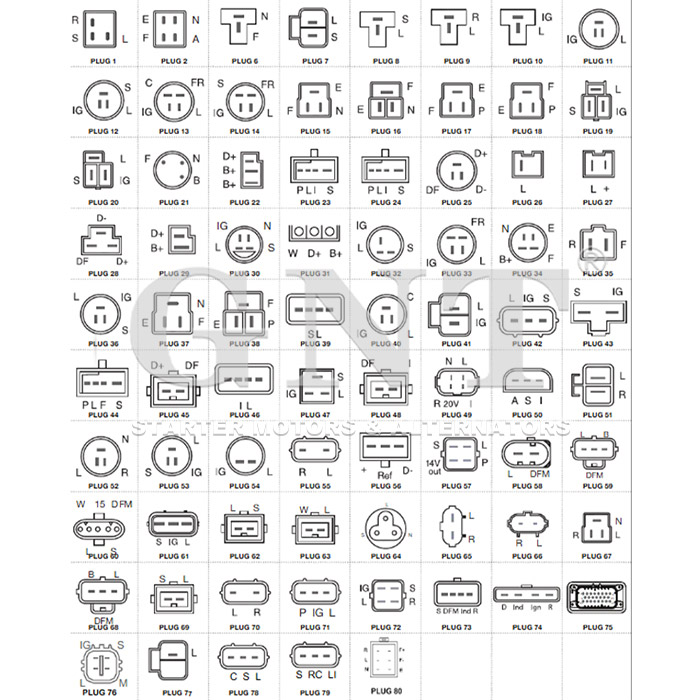

Common plugs can refer to the following pictures
Common plugs can refer to the following pictures
